| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| 証明: | CE |
| モデル番号: | TEM-620XH |
| 最小注文数量: | 1PC |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 4～6営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 100個/月 |
| 保証: | 12ヶ月 | 応用: | 産業用検出 |
|---|---|---|---|
| 使用法: | 欠陥検出 | 力: | 電子 |
| 名前: | Tmteck TEM-620XH リバースキャナー | 直径測定範囲(mm): | 6-50 |

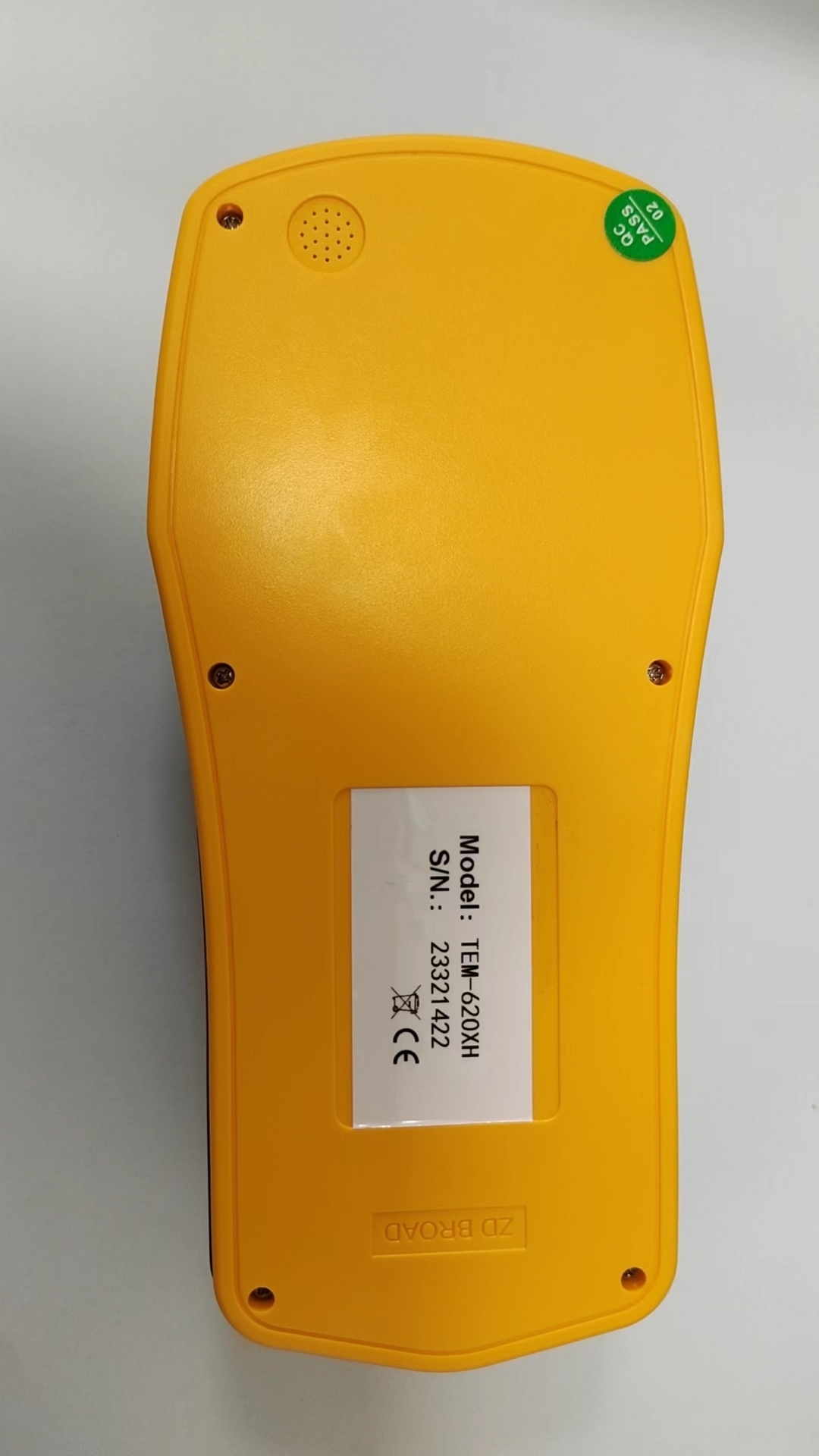

TEM-620XH Rebar scanner portable rebar integrated detector
The first generation portable rebar integrated detector TEM-620XH uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data.
TEM-620XH Rebar scanner is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology
| Model | TEM-620XH Rebar scanner | |
| Diameter Measuring Range(mm) | φ6~φ50 | |
| Measuring Range (mm) | 5~100 | |
| Thickness Measuring Accuracy(mm) | 5~40 | ±1 |
| 41~60 | ±2 | |
| 61~80 | ±4 | |
| 81~90 | ±5 | |
| 91~100 | ±6 | |
| Diameter Measuring Modes | √ | |
| JGJ Measurement | √ | |
| Data Storage | USB transfer | |
| Off time | √ | |
| Working Temperature | -10℃~42℃ | |

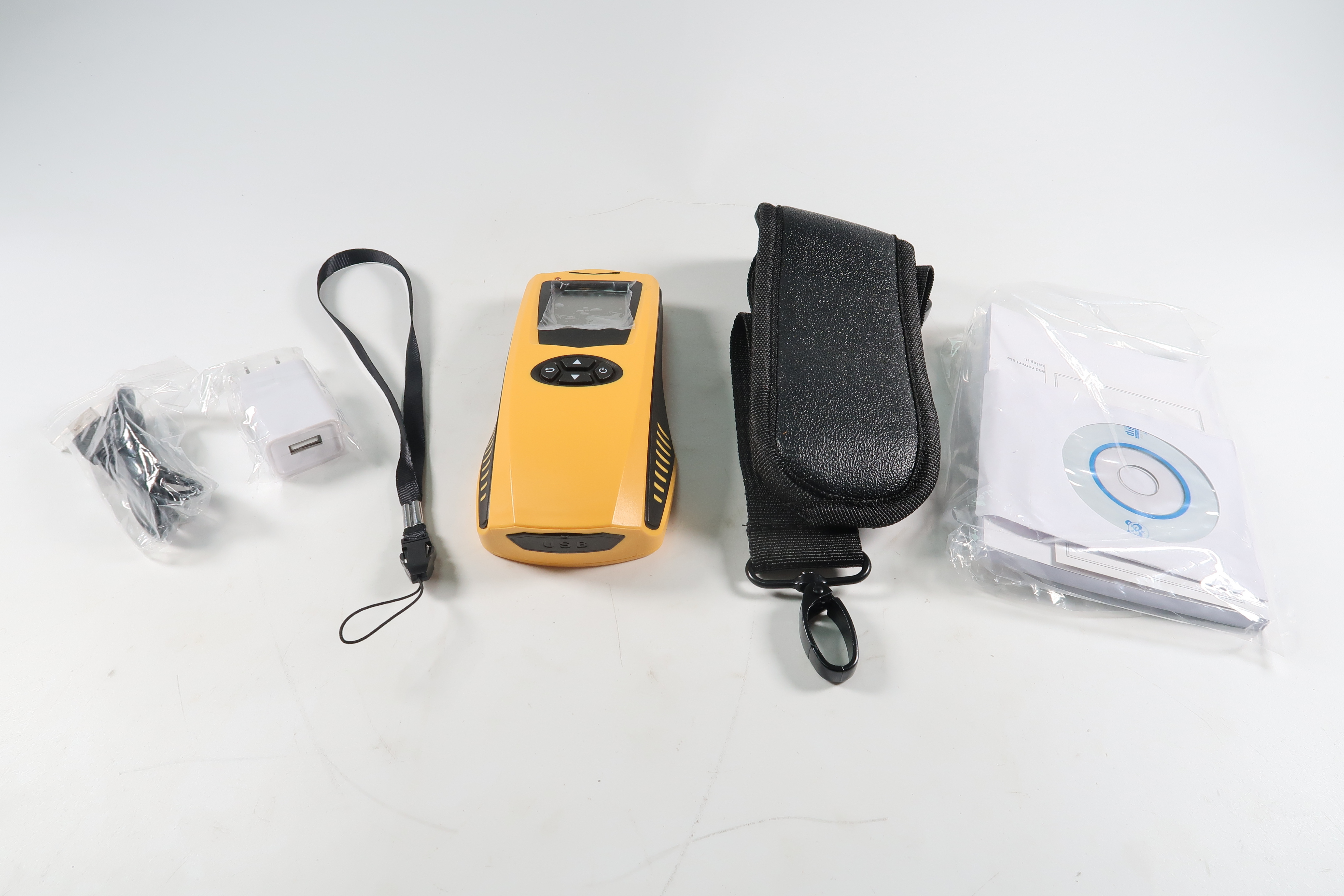

| Rebar scanner | ×1 Unit |
| Charger | ×1 Unit |
| USB cable | ×1 Unit |
| User Manual | ×1 Unit |
| Warranty Card | ×1 Unit |
| Software CD | ×1 Unit |

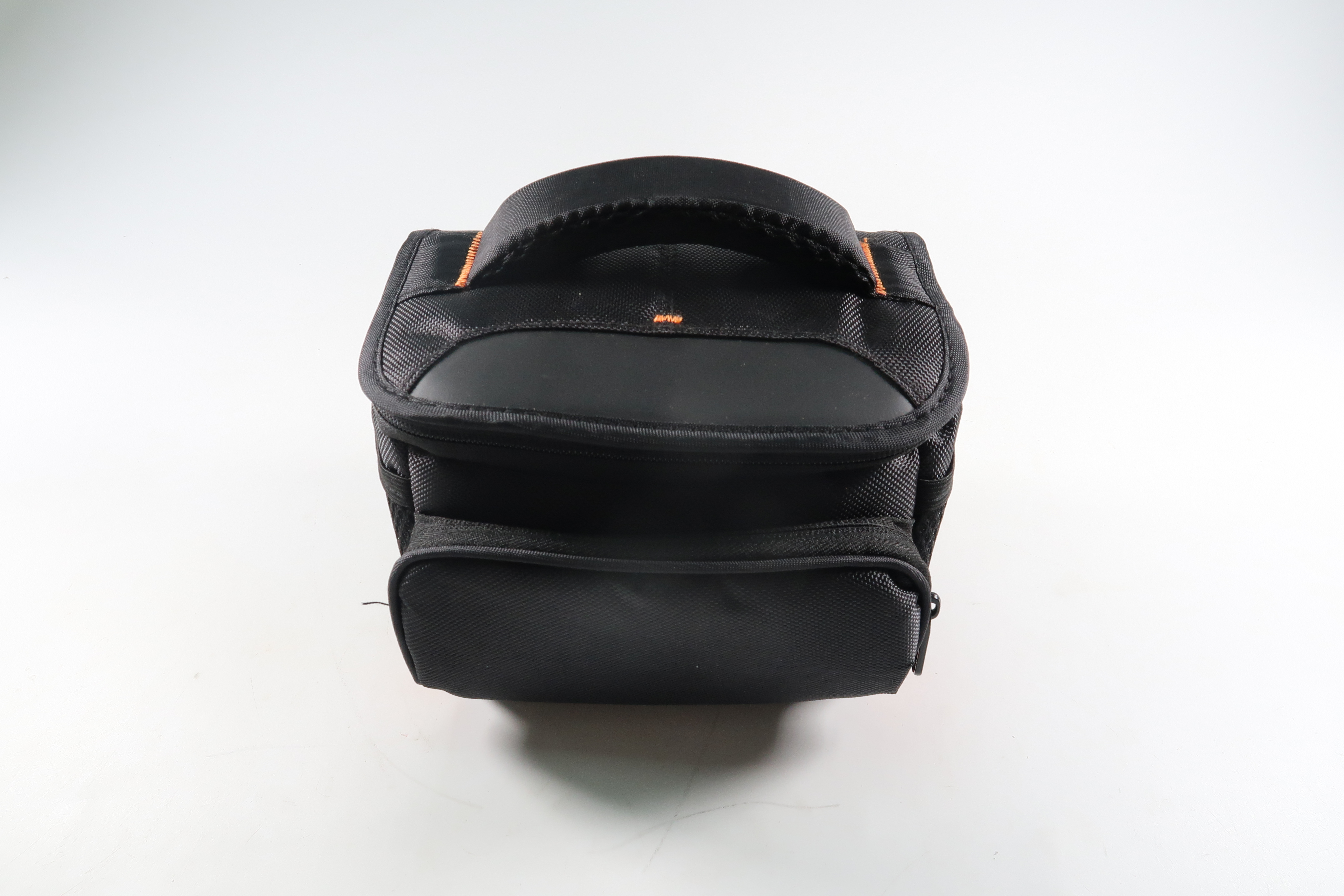

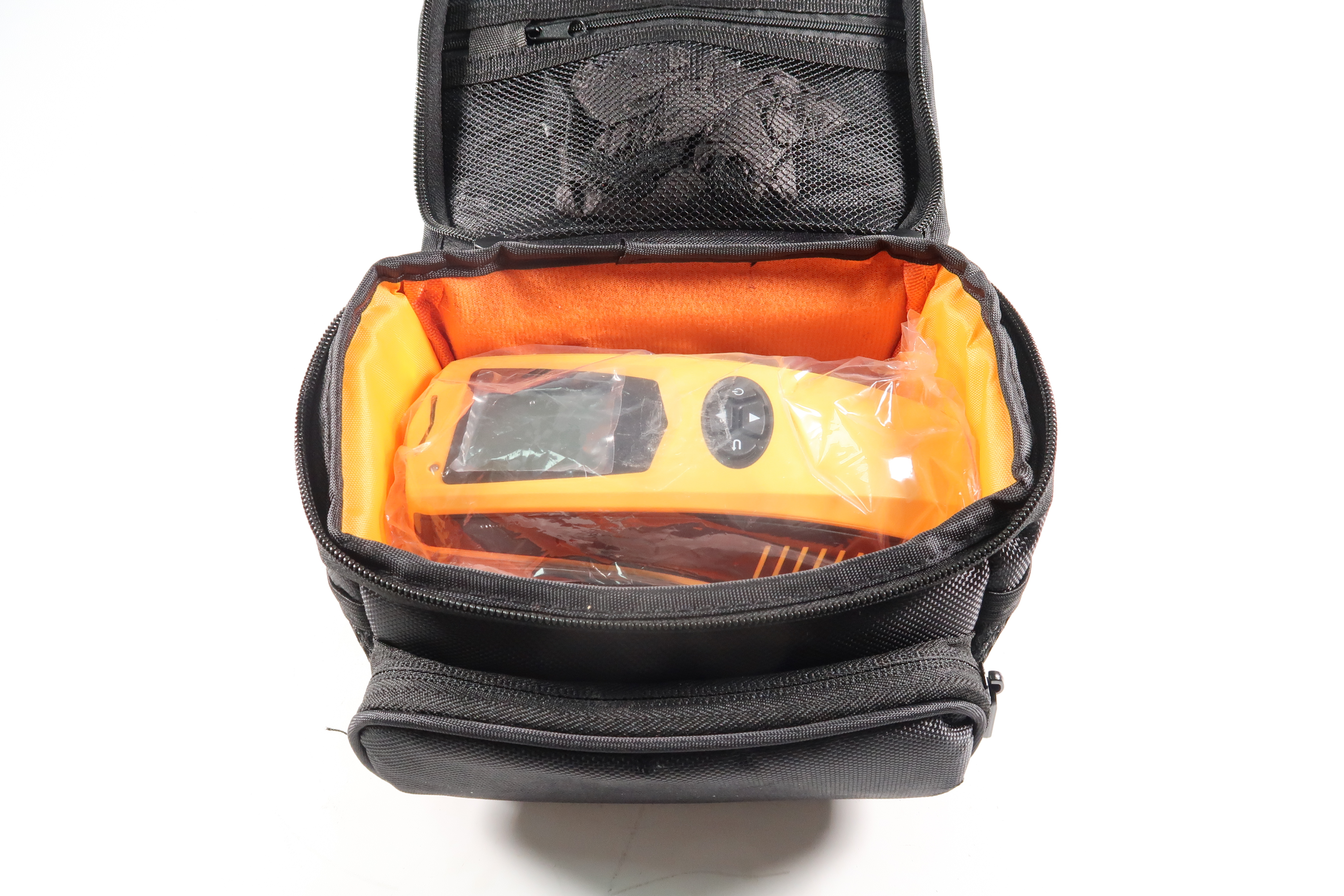

| Carrying Bag | ×1 Unit |
