Mini-Wheel Encoder Compatible With Olympus Ndt Standard Pa Wedges Made By TMTeck

FEATURES

Waterproof

Small dimensions

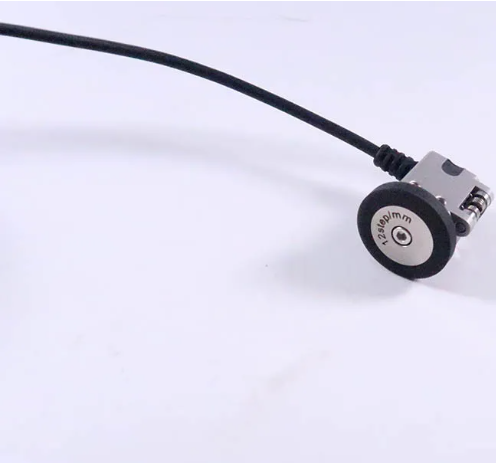

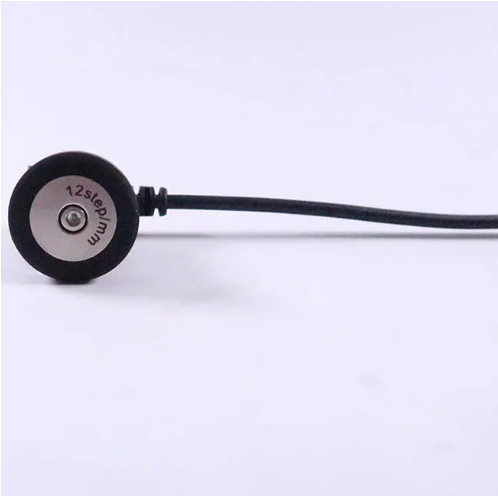

Encoder resolution is engraved on the wheel

Removable encoder wheel

Double O-ring tire for better adherence

Metallic strain relief for cable protection

Spring-loaded pin for encoder attachment

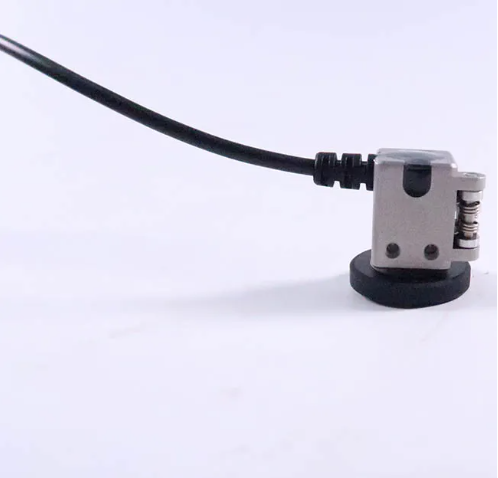

Two M3 threaded holes on top of the casing for rigid attachment

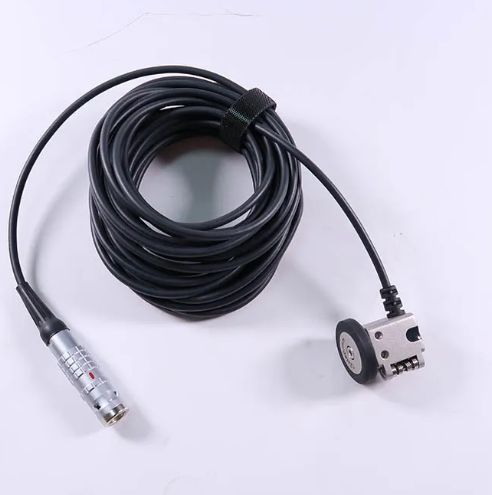

DE version is compatible with the Omniscan instrument (with DE15 connector type)

BX version is compatible with the FOCUS LT instrument (with Bendix connector type)

The Mini-Wheel Encoder is used for the positioning and dimensioning of defects in the

scan axis. It can synchronize data acquisition with probe movement.

The Mini-Wheel Encoder is waterproof and compatible with the HST-X04 scanner, as well

as Olympus NDT standard PA wedges that can be connected with the included bracket kit.

This miniature encoder is built with an aluminium casing, a stainless steel wheel, and has a

resolution of 12 counts per millimeters (304.8 counts per inch).

Mini-Wheel Encoder Ordering Information

Part number, Cable length (m), Connector

Standard Inclusions

• 1 encoder with standard wheel

• 1 bracket kit

• 1 Allen key screwdriver for bracket attachment

• 1 carrying case
