| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| 証明: | CE |
| モデル番号: | JC-10 |
| 最小注文数量: | 1pc |
| 価格: | 交渉可能 |
| パッケージの詳細: | 1pc/カートン |
| 受渡し時間: | 7〜15日 |
| 支払条件: | T/T、Western Union、PayPal |
| 供給の能力: | 100pcs/月 |
| モデル: | JC-20 | レティクル・フット・グリッチ値: | 1mm |
|---|---|---|---|
| オブジェクトの拡大: | 1x | 眼鏡の拡大: | 20X |
| 総増幅: | 20X | 名前: | 読み込み顕微鏡 |
| 眼鏡の格子回路: | 8フィート以下 | 有効な測定の範囲: | 0-6mm |
| ハイライト: | Brinell microscope portable measuring,JC-10 microscope with LED lights,20x metallographic microscope with readout |
||

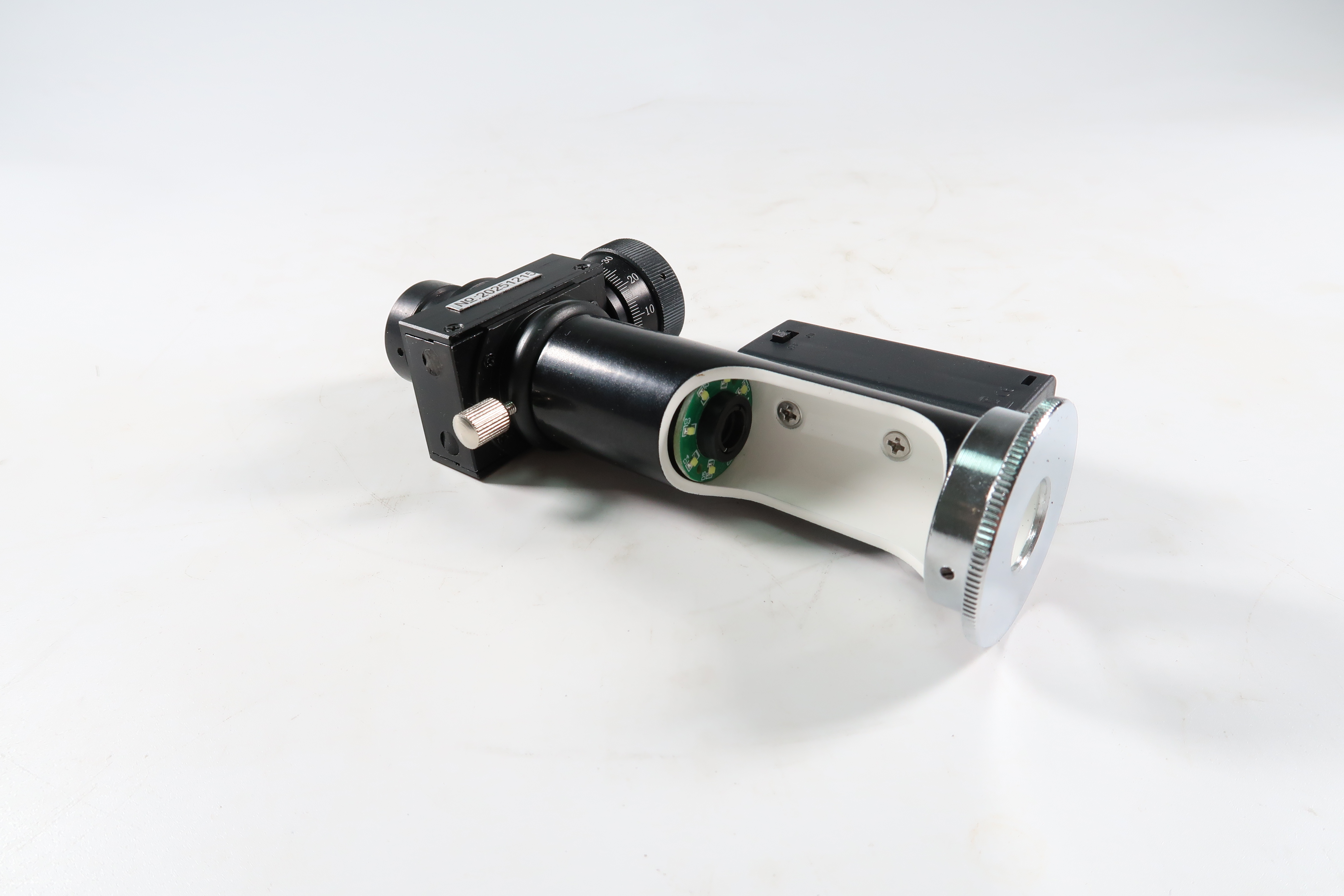

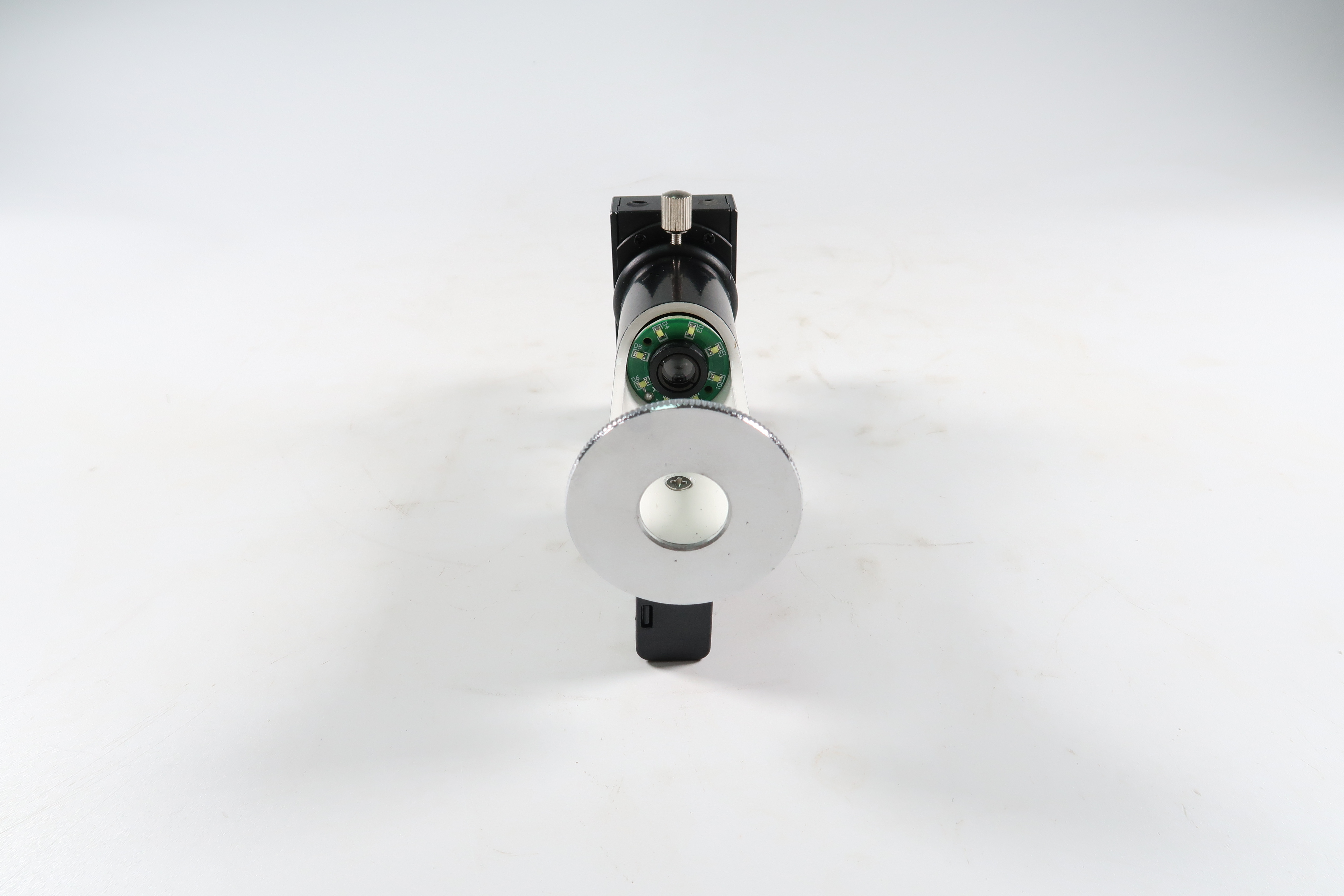

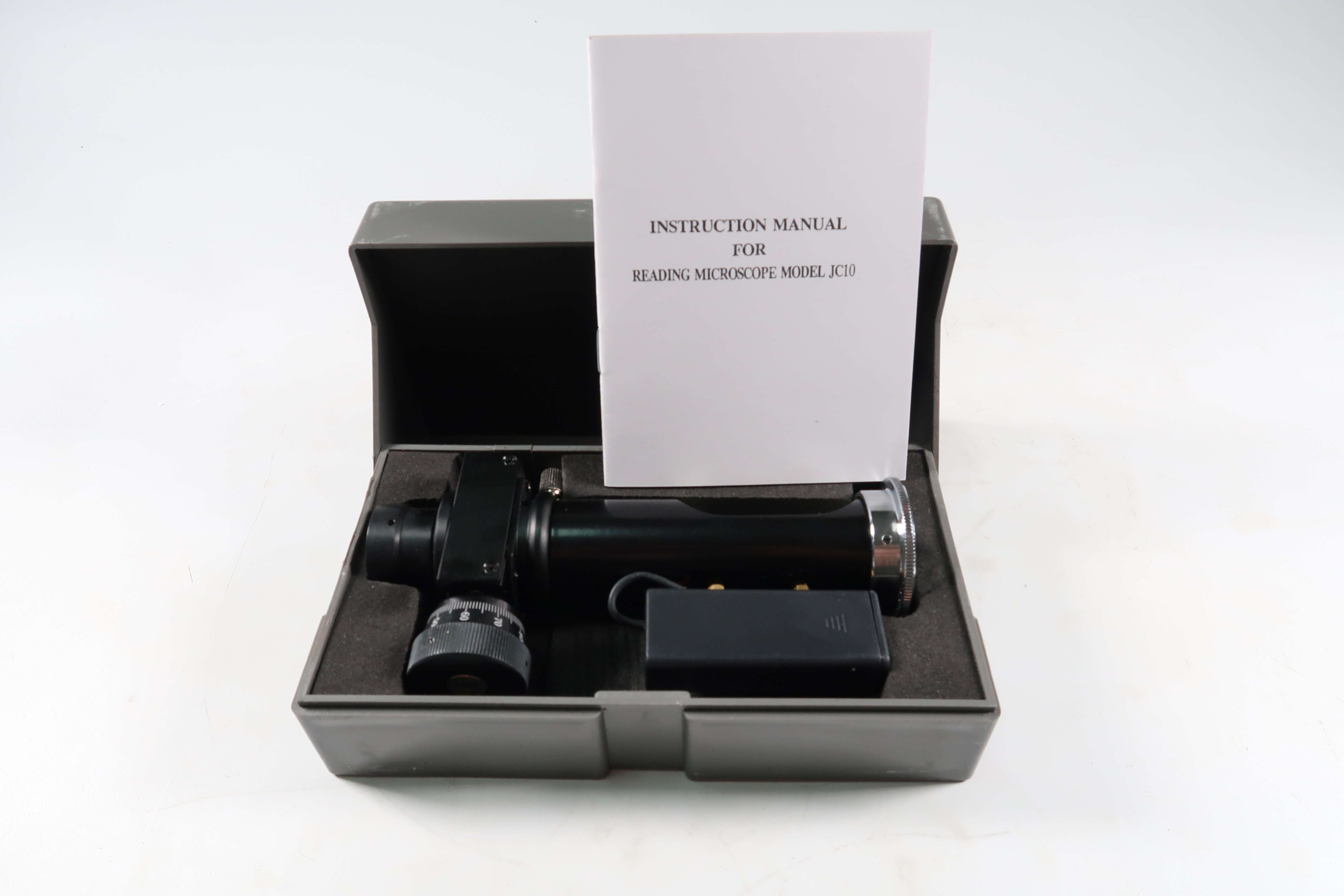

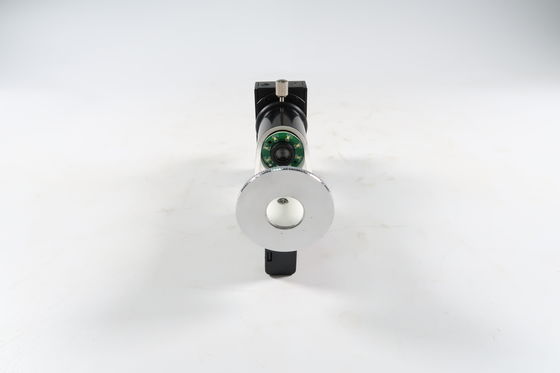

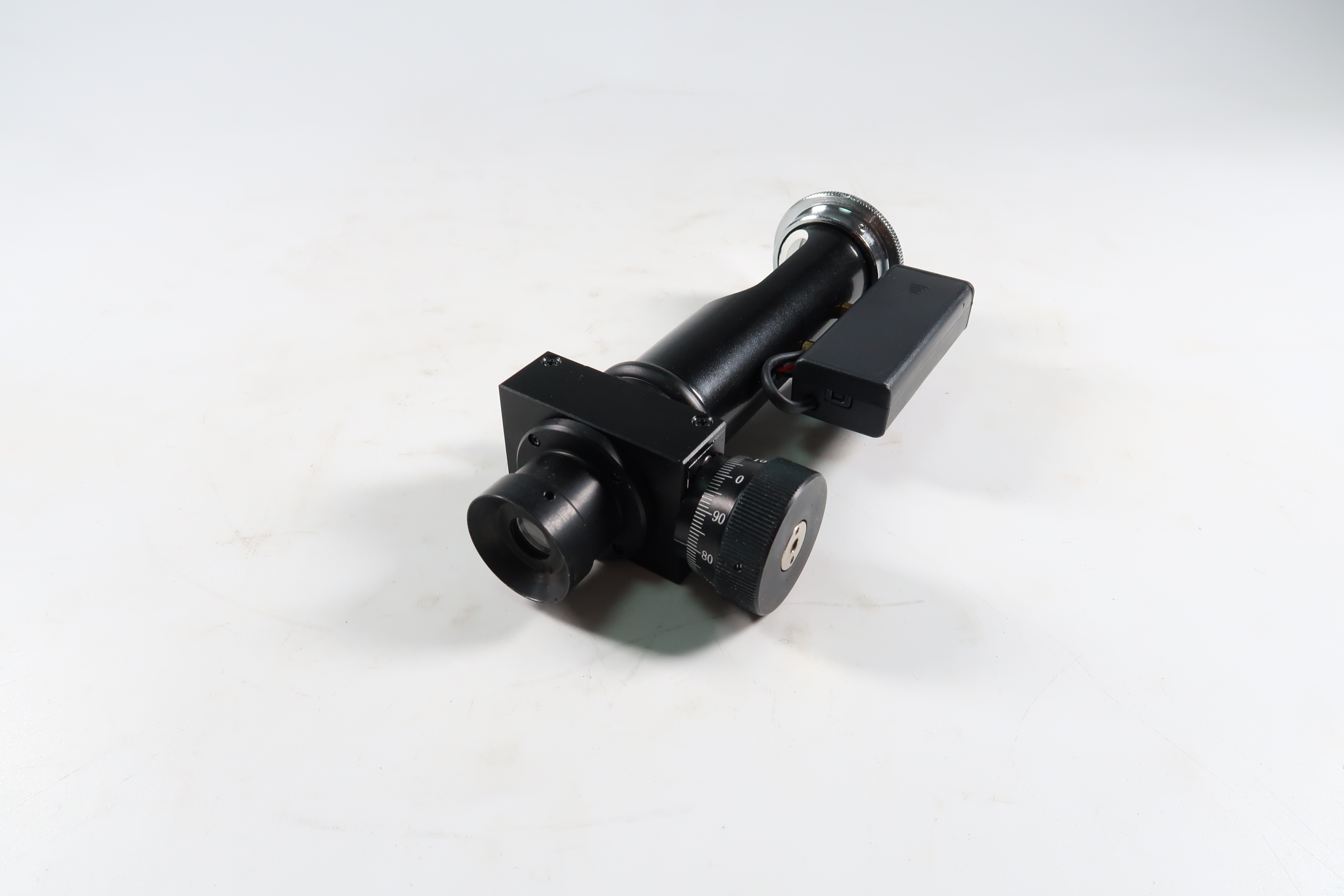

Readout Microscope Brinell Microscope 20X
high quality with cheap price!
Use:
Portable measuring reading microscope simple structure, easy to use, can be determined distance, groove width and groove distance, keyway width slit dents, the workpiece width, length, surface quality of metal, fiber, fabric density, such as field samples.
The apparatus is particularly suitable for measuring Brinell and Vickers hardness test indentation size.
Lighting:

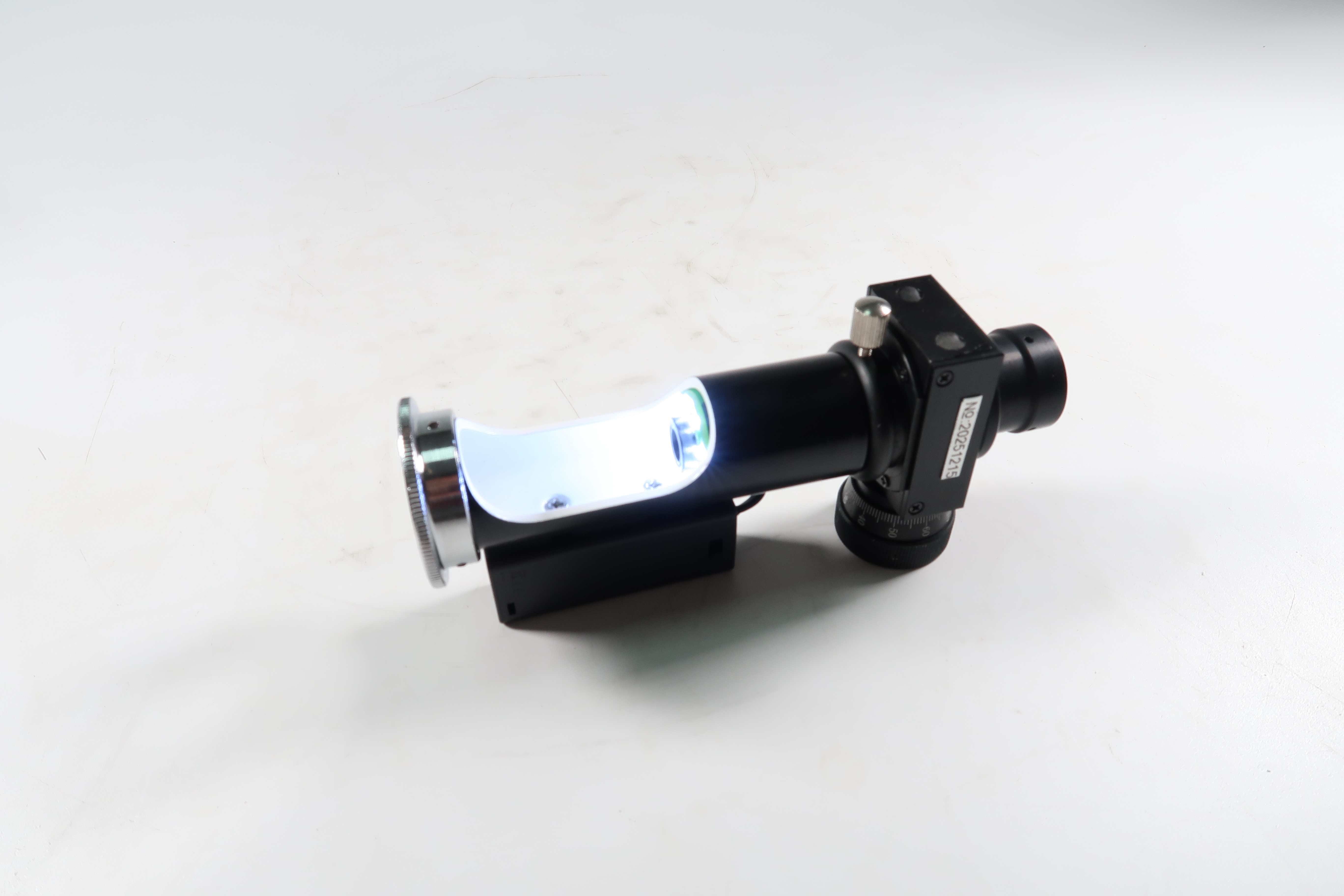

The apparatus employs advanced LED lighting systems, lighting in the field or inconvenience the use of the site.
| Model No. | JC-10 |
| Total magnifications | 20× |
| Eyepiece magnifications | 20× |
| Object magnifications | 1× |
| Reticle-foot lattice value | 1mm |
| Eyepiece grid reticle | Less than 8 feet |
| Effective measurement range | 0~6 mm |
| Micrometer drum Min. reading | 0.01mm |
| Net weight | 0.5kg |
