| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTECK |
| 証明: | CE |
| モデル番号: | TMLC-A1 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 7営業日 |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給の能力: | 1週間以内に10個 |
| 色: | 青 | 厚み試験範囲: | 40～820mm |
|---|---|---|---|
| データストレージ容量: | 200 個のコンポーネントまたは 30,000 個の測定点 | ホストシェル: | 防水 防塵 防衝撃 |
| 電源: | ホストと送信プローブの両方にリチウム電池が内蔵されています | データ送信方法: | USB伝送、ワイヤレスクラウド伝送（オプション） |

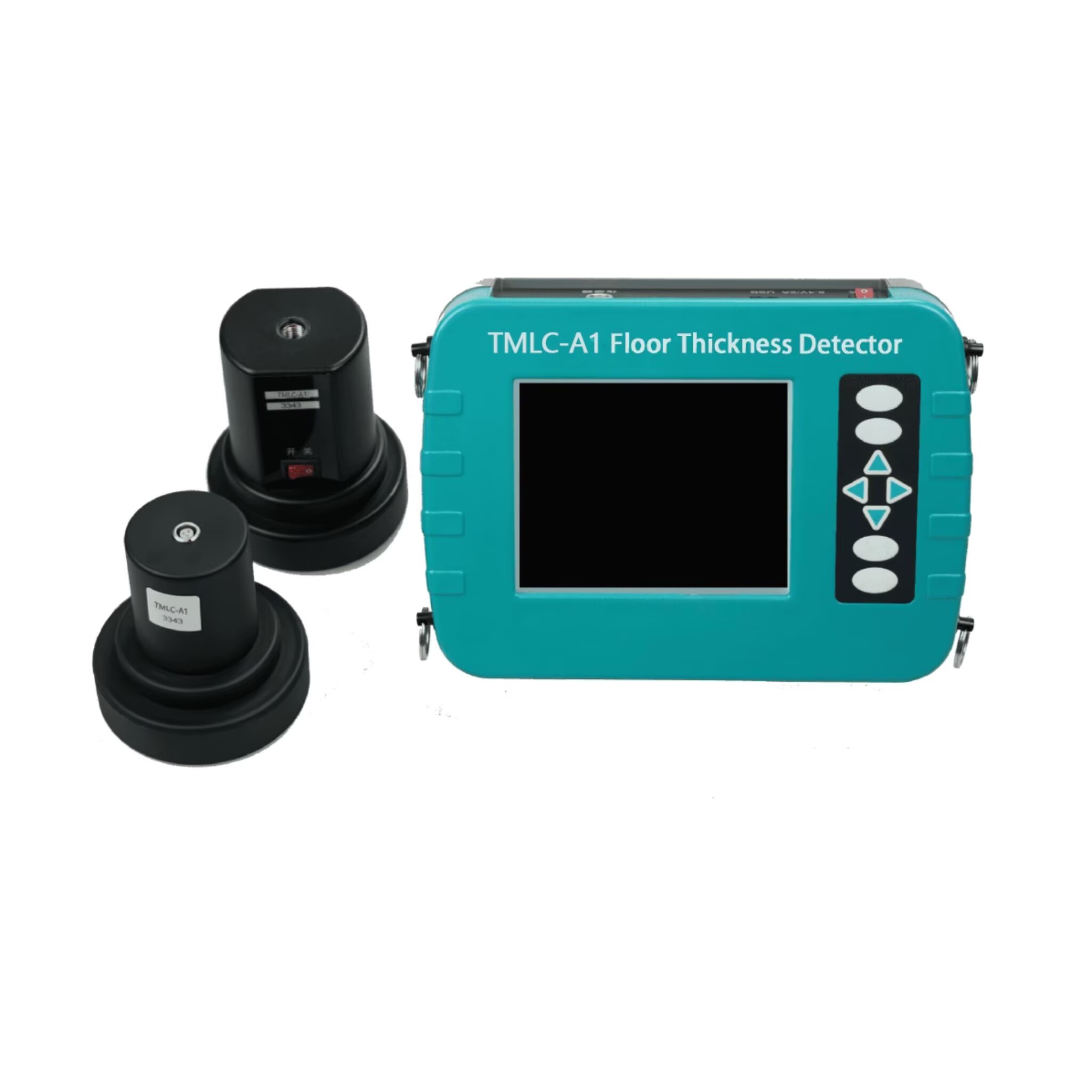

The TMLC-A1 floor thickness tester is a portable instrument suitable for testing the thickness of concrete or other non-magnetic media by non-destructive testing methods. When in use, the transmitting probe and the receiving probe are placed on the two opposite test surfaces of the floor to transmit and receive electromagnetic signals respectively. The instrument tests the floor thickness value according to the received signal strength.
| Parameter | Specification |
|---|---|
| Screen size | 5 inches |
| LCD resolution | 160x128 |
| Volume | 195x140x45mm |
| Weight | 0.8kg |
| Host shell | Waterproof, dustproof, shockproof |
| Thickness test range | 40~820mm |
| Test accuracy |
40~500mm: ±1mm 501～600mm: ±2mm 601～700mm: ±4mm 701~800mm: ±8mm |
| Data storage capacity | 200 components or 30,000 measuring points |
| Data transmission method | USB Transmission, wireless cloud transmission (optional) |
| Power supply | Both the host and the transmitting probe have built-in lithium batteries |
| Working environment requirements |
Temperature: -10℃~40℃ Humidity: <90%RH No strong alternating electromagnetic field Avoid prolonged exposure to direct sunlight |
| Packing Specifications |
Material: Engineering plastic Volume: 480*165*400mm Weight: 5.5kg |
