F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus

基本情報

ベストプライス接触

製品の説明

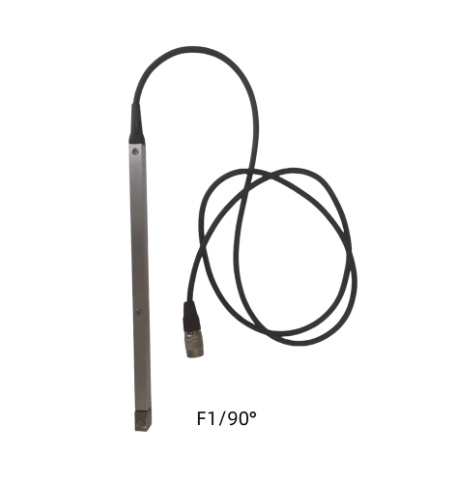

F1/90 Coating thickness probe for COATING

THICKNESS GAUGE TM510FNplus

Probe		F400	F5	F1	F1/90°		F10
Measuring Principle			Magnetic method
Measuring range(mm)		0～400um	0～1250 um				0～10000
Min resolution(mm)		0.1	0.1				10
Tolerance	One-point calibration (mm)	±(2%H+0.7)	±(2%H+1)				±(2%H+10)
	Two-point calibration (mm)	±(1%H+0.7)	±((1%H+1)				±(1%H+10)
Minimum radius of curvature (convex) (mm)		1	1.5	1.5		flat	10
Minimum measuring area(mm)		F3		F7		F7	F40
Minimum thickness of base material(mm)		0.2		0.5		0.5	2

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus 0

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus 1

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus 2

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus 3

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus 4
