| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| モデル番号: | TS22 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 25営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 100個/1週間 |
| モデル番号:: | 5L16-1.6x16-TS22/5L16-25.6x16-A3 | 要素: | 16 |
|---|---|---|---|
| 要素の形状: | リニア | 保証: | 12ヶ月 |
| 場合: | ステンレス鋼 | 色: | スライバー |
| サイズ: | 長さx幅x高さ36x36x25(mm)1.41x1.41x0.98(インチ) |

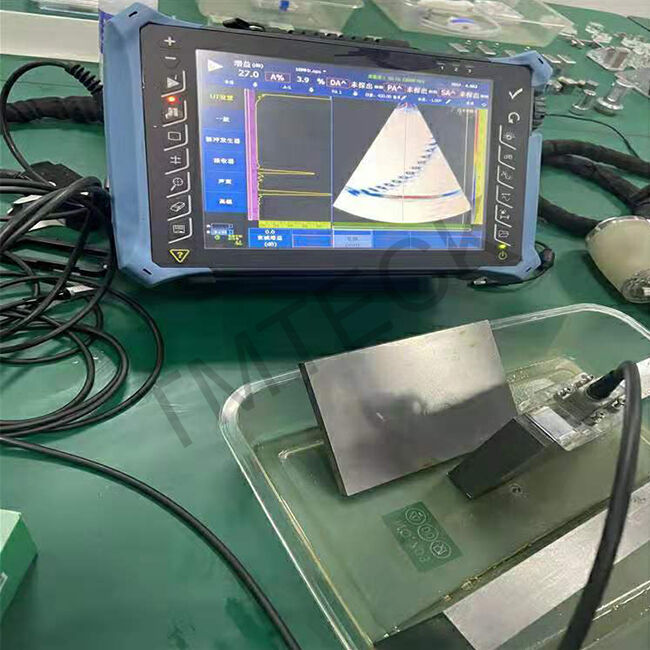

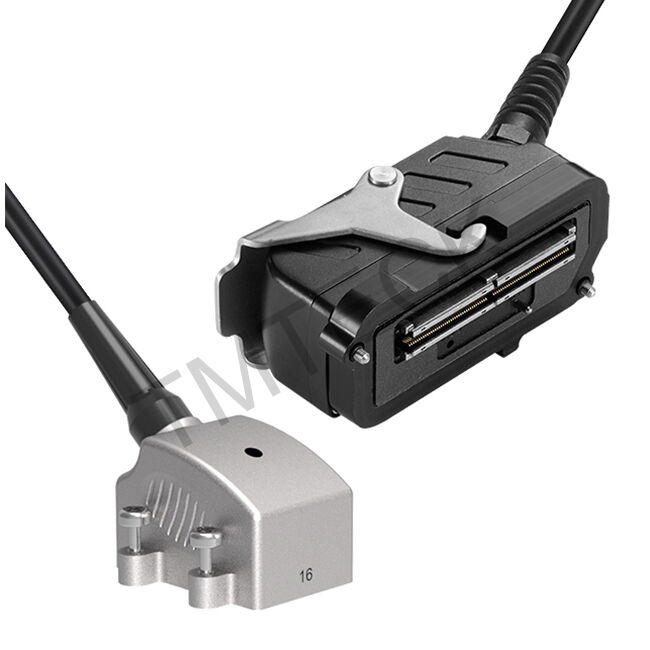

Deep Penetrating Probes:Low frequency with strong sound penetration,suitable for detecting thick parts
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Weld penetration deep penetration series.
3.Acoustically matched to Rexolite for most angle beam.
Application
1.Thick plate material and weld
2.Forgings, noise or granular materials
3.Moderate constitution and large monitoring range
Probe Specification
| Probe Series |
Model | Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev.(mm) | Size(LxWxH) |
| TS22/A3 | 3.5L16-1.6x16 | Linear | 3.5 | 16 | 1.60 | 25.6 | 16.0 |
36x36x25 (mm) 1.41x1.41x0.98 (in) |
| 5L16-1.2x16 | Linear | 5 | 16 | 1.20 | 19.2 | 16.0 | ||
| 5L16-1.6x16 | Linear | 5 | 16 | 1.60 | 25.6 | 16.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS22/A3 | N0L | 0°LW | -30°~30° |
LxWxH:36x36x25 (mm) LxWxH:1.41x1.41x0.98 (in) |
| N30L | 30°LW | 40°~70° | ||
| N45L | 45°LW | 40°~70° | ||
| N60L | 60°LW | 40°~70° | ||
| N45S | 45°SW | 40°~70° | ||
| N55S | 55°SW | 40°~70° | ||
| N60-IHC | 60°SW | 40°~70° | ||
| N60-AOD100 | 60°SW | 40°~70° | ||
| N60-IHC-AOD100 | 60°SW | 40°~70° |
Quick Details
Model Number:5L16-1.6x16-TS22/5L16-25.6x16-A3
Element:16
Element Shape:Linear
Size:LxWxH36x36x25(mm)1.41x1.41x0.98(in)
Warranty:12 Months
Case:Stainless steel
Application:Thick plate material and weld
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
