| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| モデル番号: | TS21A14 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 25営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 100個/1週間 |
| タイプ: | フェーズドアレイプローブ | 要素: | 60 |
|---|---|---|---|
| 要素の形状: | 凹面 | サイズ: | 長さx幅x高さ 68x23x20(mm) 2.68x0.91x0.79(インチ) |
| 応用: | 石油とガス: 石油パイプライン、ボトル、タンクなど。 | 色: | スライバー |

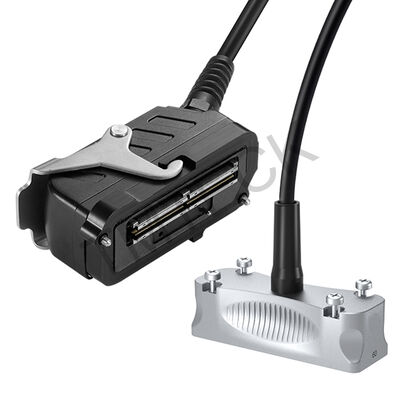

Corrosion Probes: Corrosion Probes detect wall thickness reduction caused by corrosion, erosion, etc., and can detect damage in the wall.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.
3. S20 is internal focus probeto optimize the signal to noise ratio
4.Good beam energy in the detection of small pipe/thin wall samples
5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam
6.Can detect thick flat materials and welds, forgings, noise or granular materials
Applications
1. Oil and gas: oil pipelines, bottles, tanks, etc.
2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.
3. Other: testing of thick welds, pipe welds, etc.
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS21/A14 | 2.25L60-1.0x10 | 2.25L60-60x10 | Linear | 2.25 | 60 | 1.00 | 60.0 | 10.0 |
68x23x20 (mm) (in) |
| 3.5L60-1.0x10 | 3.5L60-60x10 | Linear | 3.5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 5L60-1.0x10 | 5L60-60x10 | Linear | 5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 7.5L60-1.0x10 | 7.5L60-60x10 | Linear | 7.5 | 60 | 1.00 | 60.0 | 10.0 | ||
| 10L60-1.0x10 | 10L60-60x10 | Linear | 10 | 60 | 1.00 | 60.0 | 10.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Wedge Specification
| Probe Series | Model | Compatible Model | Element Shape | Size(LxWxH) |
| TS21/A14 | N0L | 0°LW | 40°~70° |
68x23x20 (mm) (in) |
| N60L | 60°LW | 40°~70° | ||
| N55S | 55°SW | 40°~70° |
Quick Details
Model Number:5L60-1.0x10-TS21/5L60-60x10-A14
Element:60
Element Shape:liner
Size:LxWxH 68x23x20(mm) 2.68x0.91x0.79(in)
Application:Oil and gas: oil pipelines, bottles, tanks, etc.
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
