| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| モデル番号: | TS30 R5 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 25営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 100個/1週間 |
| モデル番号:: | 5C64-1.65x8-TS30/5C64-105.6x8-R5 | 要素: | 64 |
|---|---|---|---|
| 要素の形状: | 凹面 | 保証: | 12ヶ月 |
| 場合: | ステンレス鋼 | 色: | スライバー |

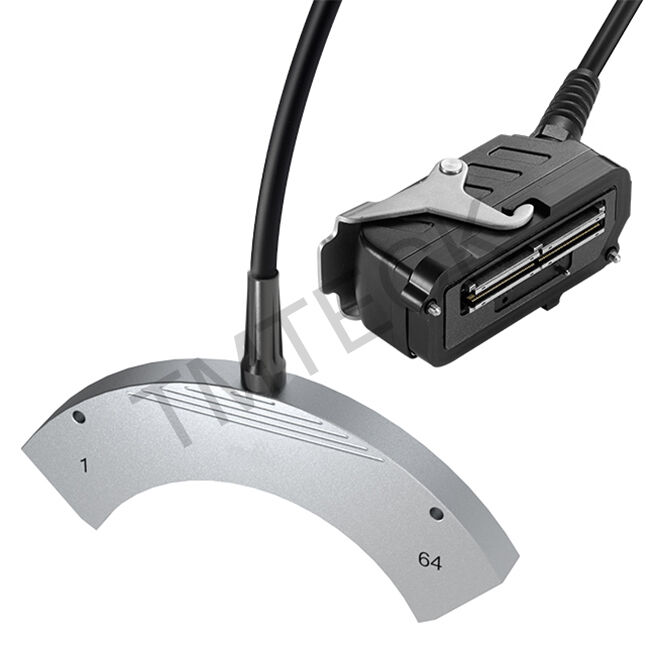

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.
Advantages
1.Near-wall probes have shorter dead zones at both ends
2.Widely used in composite channel inspection
3.Can be used for C-scan detection of composites (delamination, debonding and porosity)
4.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS30/R5 | 2.25C64-1.65x8 | 2.25C64-105.6x8 | Concave | 2.25 | 64 | 1.65 | 105.6 | 8.0 |
131x14x55 (mm) 5.16x0.55x2.17 (in) |
| 3.5C64-1.65x8 | 3.5C64-105.6x8 | Concave | 3.5 | 64 | 1.65 | 105.6 | 8.0 | ||
| 5C64-1.65x8 | 5C64-105.6x8 | Concave | 5 | 64 | 1.65 | 105.6 | 8.0 | ||
| 5C128-0.8x8 | 5C128-102.4x8 | Concave | 5 | 128 | 0.80 | 102.4 | 8.0 | ||
| 10C64-1.65x8 | 10C64-105.6x8 | Concave | 10 | 64 | 1.65 | 105.6 | 8.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:5C64-1.65x8-TS30/5C64-105.6x8-R5
Element:64
Element Shape:Concave
Size:R50,LxWxH 131x14x55(mm)5.16x0.55x2.17(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
