| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| モデル番号: | TS28 R1 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 25営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 100個/1週間 |
| モデル番号:: | 2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1 | 要素: | 16 |
|---|---|---|---|
| 要素の形状: | 凹面 | 応用: | 複合板検査 |
| カスタマイズ: | はい |

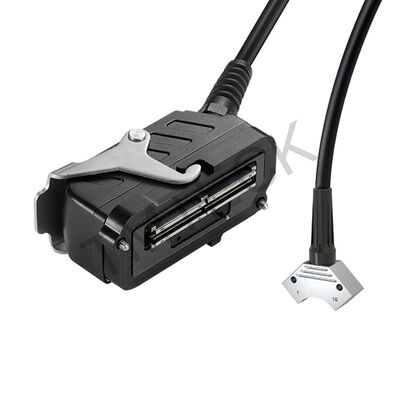

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.
Advantages
1.Near-wall probes have shorter dead zones at both ends
2.Widely used in composite channel inspection
3.Can be used for C-scan detection of composites (delamination, debonding and porosity)
4.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS28/R1 | 2.25C16-1.0x8 | 2.25C16-16.0x8 | Concave | 2.25 | 16 | 1.00 | 16.0 | 8.0 |
23.5x14x23.5(mm) 0.93x0.55x0.93(in) |
| 3.5C16-1.0x8 | 3.5C16-16.0x8 | Concave | 3.5 | 16 | 1.00 | 16.0 | 8.0 | ||
| 5C16-1.0x8 | 5C16-16.0x8 | Concave | 5 | 16 | 1.00 | 16.0 | 8.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1
Element:16
Element Shape:Concave
Size:R10.2,LxWxH 23.5x14x23.5(mm)0.93x0.55x0.93(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
