| 起源の場所: | 中国 |
|---|---|
| ブランド名: | TMTeck |
| モデル番号: | TS13 |
| 最小注文数量: | 1 |
| 価格: | 交渉可能 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 25営業日 |
| 支払条件: | T/T、Western Union、PayPal |
| 供給の能力: | 100pcs/1週 |
| モデル番号：: | 1L32-2.0x7-TS13/1L32-64x7-NW1 | アプリケーション: | 複合板検査 |
|---|---|---|---|
| 要素: | 32 | MOQ: | 1 |
| カスタマイズ: | はい | ||
| ハイライト: | Composite Plate inspection probe,Ts13 Near Wall ultrasonic transducer,Ultrasonic probe with warranty |
||

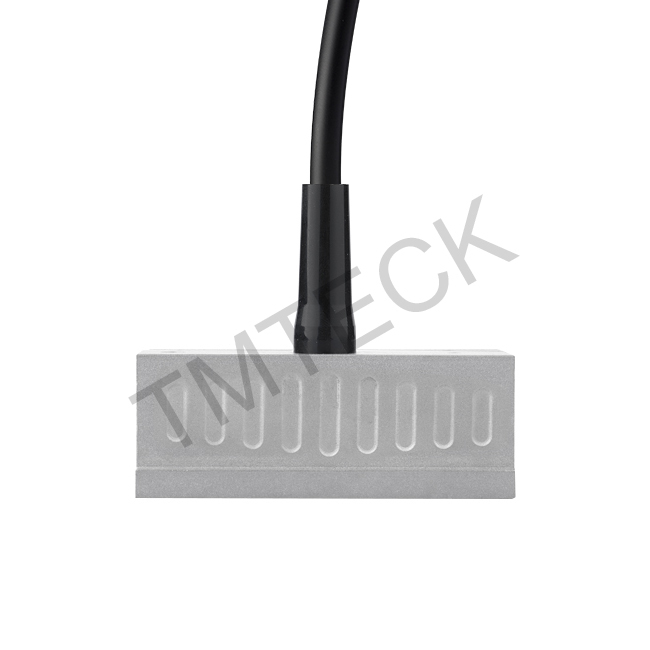

Near-wall narrow-shell probe: small width ensures a easy near-surface resolution.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Near-wall probes have shorter dead zones at both ends
3.Widely used in composite channel inspection
4.Can be used for C-scan detection of composites (delamination, debonding and porosity)

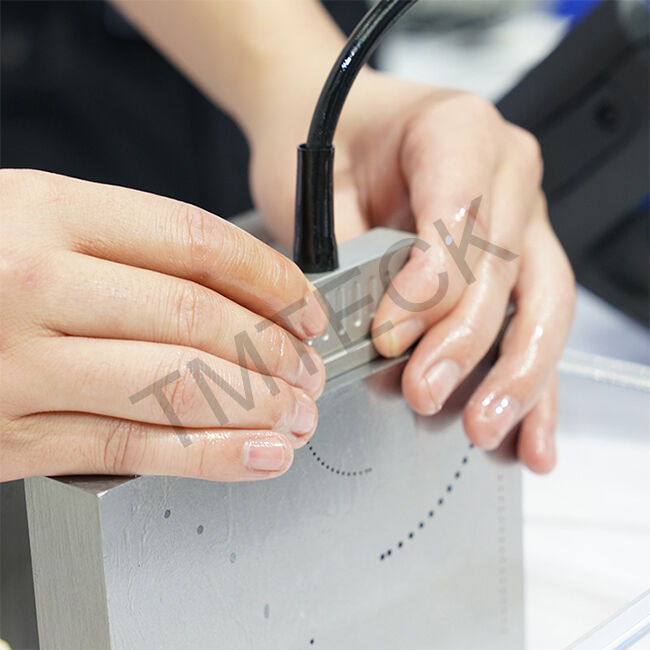

5.Automatic and manual scanning
Applications

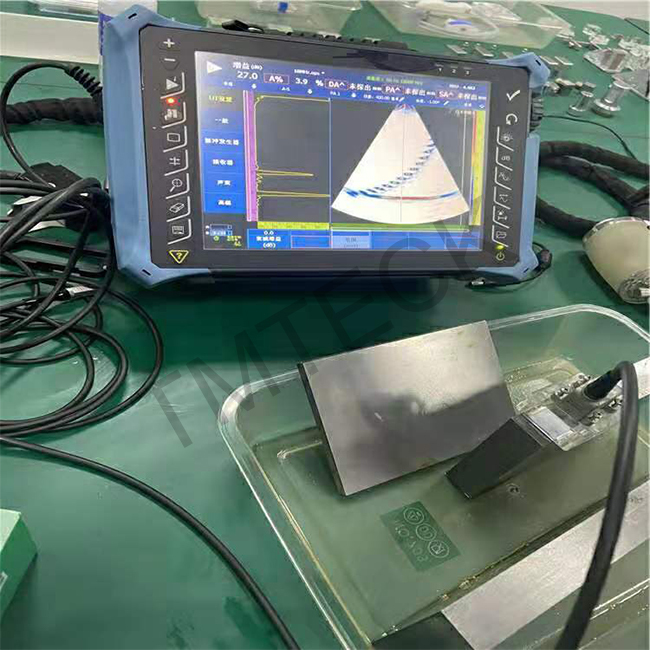

1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Freq (MHz) | E-Nos | Pitch (mm) |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
| TS13/NW1 | 1L32-2.0x7 | 1L32-64x7 | Linear | 1 | 32 | 2.00 | 64.0 | 7.0 |
66x19x25 (mm) (in) |
| 2.25L64-1.0x7 | 2.25L64-64x7 | Linear | 2.25 | 64 | 1.00 | 64.0 | 7.0 | ||
| 3.5L64-1.0x7 | 3.5L64-64x7 | Linear | 3.5 | 64 | 1.00 | 64.0 | 7.0 | ||
| 5L64-1.0x7 | 5L64-64x7 | Linear | 5 | 64 | 1.00 | 64.0 | 7.0 | ||
| 7.5L64-1.0x7 | 7.5L64-64x7 | Linear | 7.5 | 64 | 1.00 | 64.0 | 7.0 | ||
| 10L64-1.0x7 | 10L64-64x7 | Linear | 10 | 64 | 1.00 | 64.0 | 7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details

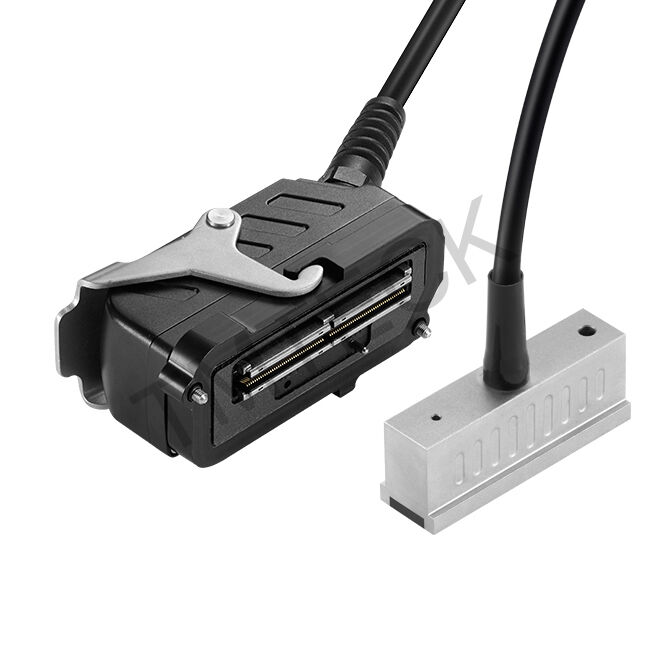

Model Number:1L32-2.0x7-TS13/1L32-64x7-NW1
Element:32
Element Shape:linear
Size:LxWxH 66x19x25(mm) 2.60x0.75x0.98(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
