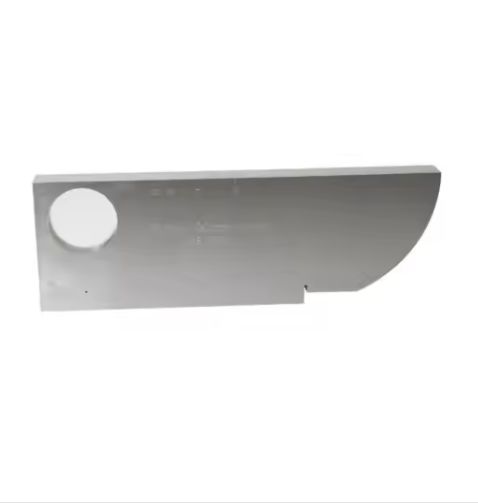

Standard Test Blocks ASTM E164-2013 IIW-TYPE 1 No.1 Angle Beam Ultrasonic Calibration 1018 Steel Test Block MM

基本情報

ベストプライス接触

詳細情報

Product::	IIW Type 1 Calibration Block	Material:	1018 steel,stainless steel,aluminum
Standard:	ASTM E164-2013	Type::	NDT Accessories
High Light::	IIW Type 1 Calibration Block

製品の説明

About the item

Used for calibration of shear and longitudinal transducers,

and verification of shear wedge exit point and refracted

angle. Can also be used for resolution and sensitivity

checking. In accordance with: IIW (International Institute

of Welding) and ASTM E164, U.S. Customary Block.

Metric version Dimensions: 25.0 mm x 100.0 mm x 300.0

Features: 100.0 mm radius, 1.5 mm dia hole, 6.0 mm

deep x 2.0 mm wide slot, and 25.0 mm radiussed slot x

1.5 mm deep x 3.0 mm wide.

Material: 1018 Steel

Weight:6.7KG

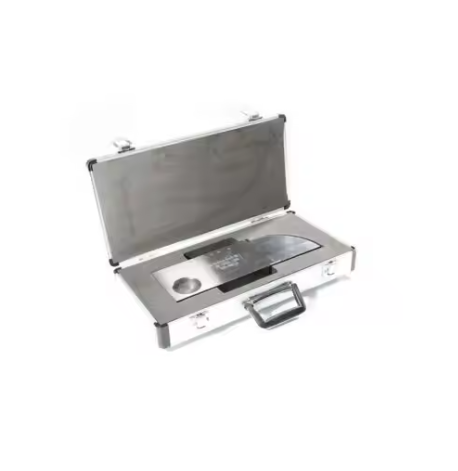

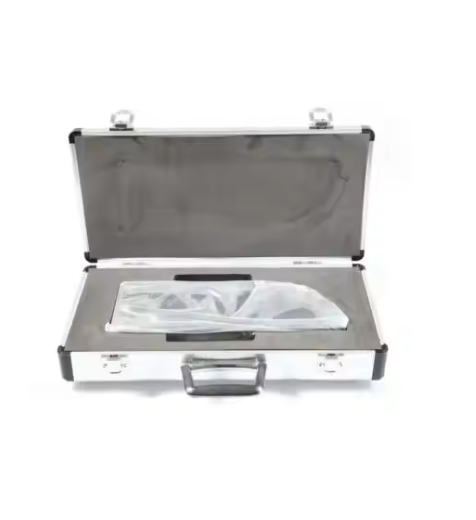

Package Including:

1 unit calibration block

1 suitcase

1 certificate
